Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 9500X2550X3650mm (can Be Customizable) |
| Max Payload: | 30-60ton | Usage: | Truck Trailer |
| Color: | Customer's Request | Landing Gear: | Two Speed 28t Heavy Duty Landing Gear |
| Suspension: | Mechanical Suspension | King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand |
| Axle: | 13/16 Ton, 3 Axles FUWA | Tire: | 12.00R22.5(Brand Optional) |
| Brake System: | Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks | Application: | Transportation For Coal,grain,sand,salt,asphalt, Potato, Etc. |
| Advantage: | Safety, Efficient, Convenient |

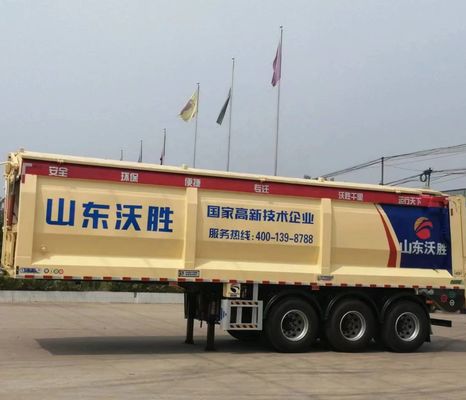

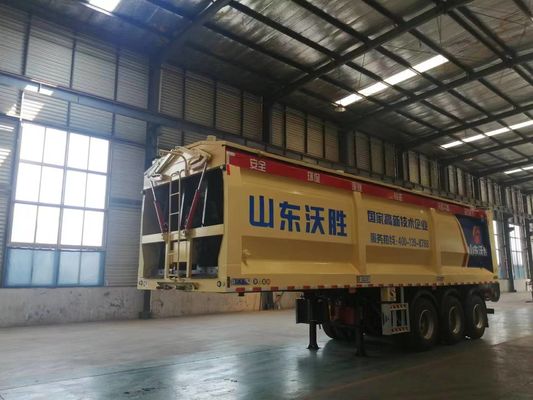

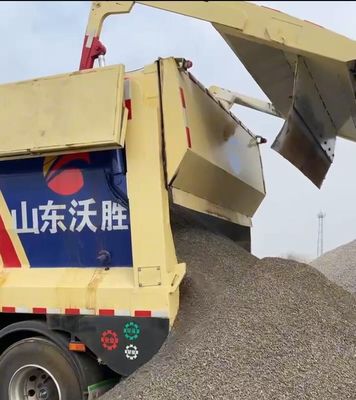

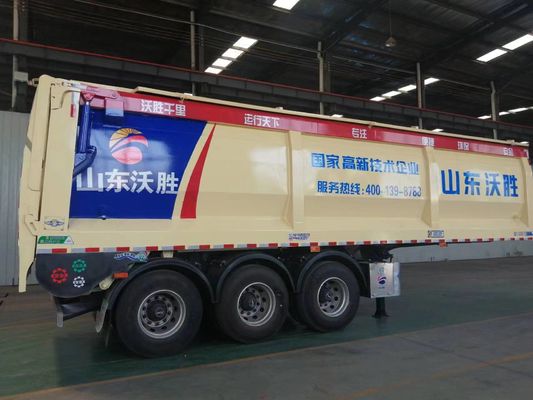

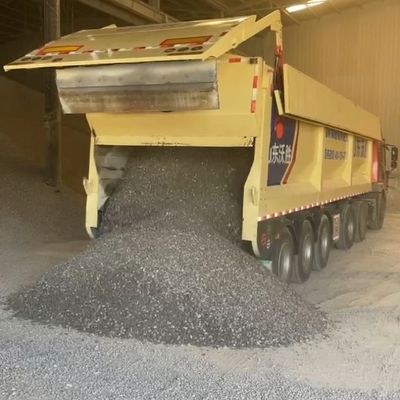

Product Name | Automatic Conveyor Crawler Belt dump Semi Trailer |
Dimension(L*W *H) | 9500*2550*3650mm |
Box height | 2000mm |
Tare weight (kg) | 8500 (depends on final configuration) |
Max Loading Capacity (kg) | 60000 |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 12mm, down plate is 14mm, middle plate is 8mm. |
Side wall Thickness (mm) | 4mm stainless steel (customizable) |
Rear door thickness (mm) | 2.5mm high-strength steel |
Crawler Belt Thickness(mm) | 10mm |
Stand column thickness(mm) | 3mm high-strength steel |
Push plate thickness(mm) | 2.5mm high-strength steel |
Reducer | Kerunfu 60 other brand optional |
Reducer drum thickness(mm) | 6mm |
Motor | Shanghai Electric 125 other brand optional |
Ram pump | Emphobe |
Electro-hydraulic cover | Double lift |

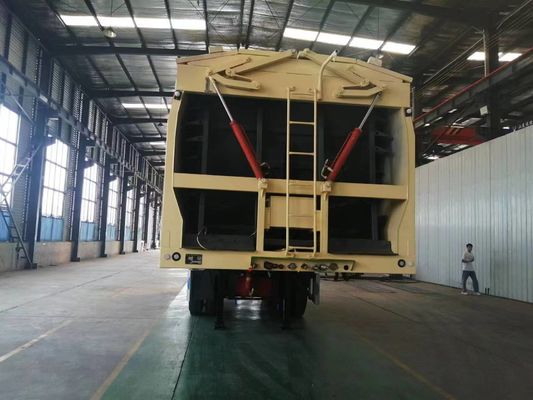

Rear guard door | Can be removed as per customer request |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc |
Tire | 235/75R17.5 / 245/70R17.5 / 245/70R19.5 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Rim | 8.0/9.0*8/12/16/17.5 |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. |
Brake System | Dual line brake system, Air chamber T30/30, 2 X 40L gas storage drums |
ABS System | None or installed as your requirement. |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,side light, side reflector etc.) |
Color | As per customer requirement |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
