Product Details:
|
| Use: | Truck Trailer, Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel, Steel | Size: | 12400*2610*1550mm (customizable), 12400*2610*1550mm (customizable) |
| Max Payload: | 50ton(customizable) | Product Name: | Side Wall Semi Trailer |
| Color: | Customization | Axle: | 13/16 Ton, 3 Axles FUWA |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand | Suspension: | Mechanical Suspension |
| Rim: | 9.00-22.5/8.00-20/8.5-20 | Tire: | 12.00R22.5(Brand Optional) |
|

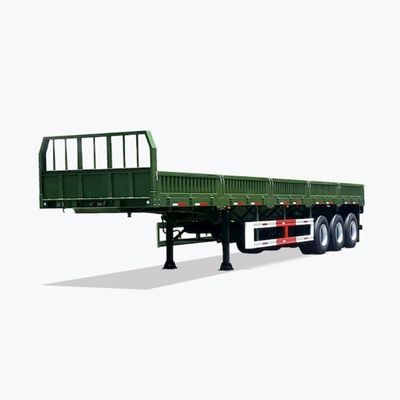

Product Name
|
Side wall Semi Trailer
|
|
Dimension(Lx W x H)(mm)
|
12400*2610*1550mm (customizable)
|
|
Inside dimension
|
12280mm*2300mm*600mm (customizable)
|
|
Tare weight (kg)
|
7500 (depends on final configuration)
|
|
Max Loading Capacity
|
50 ton(customizable)
|
|
Main Beam
|
Q345B / T700 Steel Height 500mm
upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
|
Side Beam
|
16mm channel steel(material is Q235B steel)
|
|
Bottom plate thickness (mm)
|
3mm (customizable)
|
|
Sidewall Thickness (mm)
|
1.2mm (customizable)
|
|

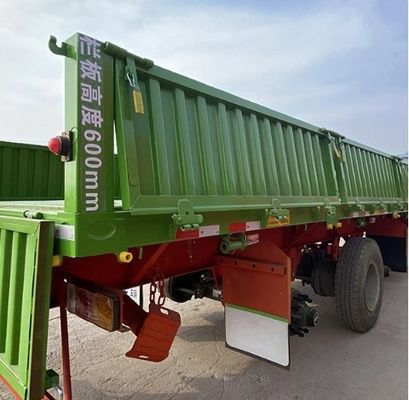

side wall height
|
600mm (customizable)
|
|
Axles
|
13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc
|
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
|
|
Rim
|
9.00-22.5/8.00-20/8.50-20
|
|
King Pin
|
2"(50mm)or3.5"(90mm) JOST or other brand optional
|
|
Suspension
|
Mechanical Suspension Air Suspension(American or Geman)
|
|
Leaf Spring
|
90(w)mm*13/16(thickness)mm*10(layer)
|
|
Twist-lock
|
12 units (customizable)
|
|
Landing Gear
|
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
|
|
Brake System
|
Dual line brake system, Air chamber T30/30,
3 X 40L gas storage drums |
|
ABS System
|
None or installed as your requirement.
|
|
Electrical system
|
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,
side light, side reflector etc.) |
|
Color
|
As per customer requirement
|
|
Spare Wheel Bracket
|
1 piece of Spare Wheel Bracket
|
|
Tool box
|
1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
|
|
Painting
|
Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
|
|
Packing
|
Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
|
|
Delivery
|
From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
|
|
Remarks
|
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
|
|
Electrical SYSTEM
|
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,
side light, side reflector etc.) |
|
Spare Wheel Bracket
|
1 piece of Spare Wheel Bracket
|
|
Accessory
|
1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
|
|
Packaging and delivery
|
Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China
port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
|
remarks
|
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
|
