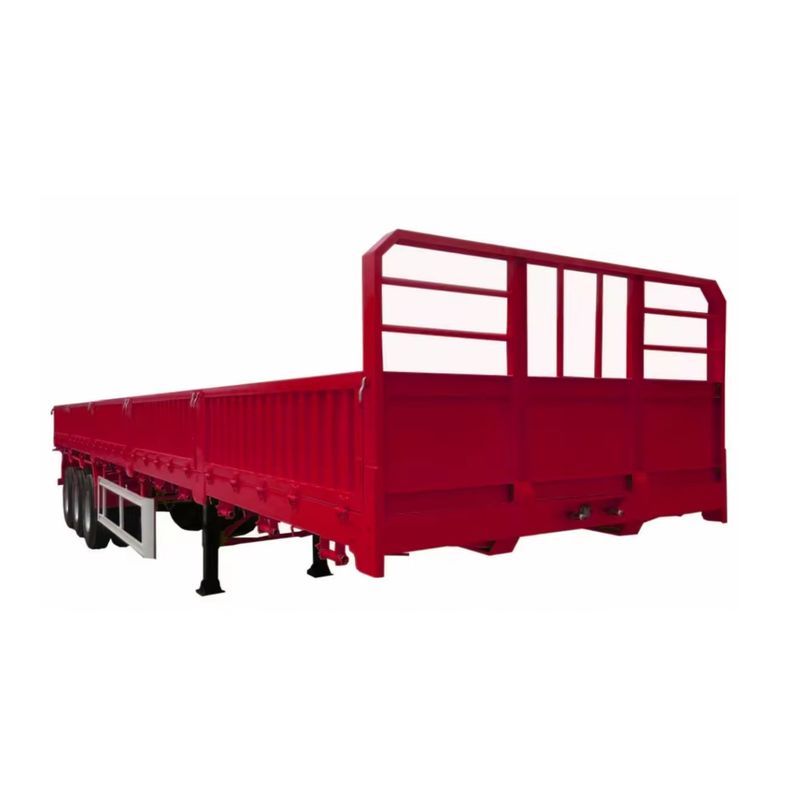

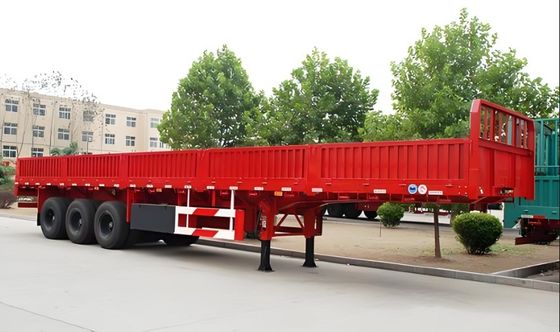

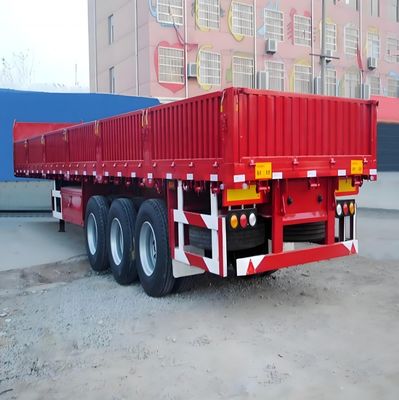

Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400X2500X3650mm |
| Max Payload: | 40-80ton | Usage: | Truck Trailer |
| Suspension: | Mechanical Suspension | Landing Gear: | Two Speed 28t Heavy Duty Landing Gear |
| Tire: | 12.00R22.5(Brand Optional) | King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand |
| Axle: | 13/16/20 Ton, 4 Axles SAF /FUWA/BPW/WOSHENG | Color: | Custom |
| Brake System: | Wabco Re 6 Relay Valve T30/30 Spring Brake Chamber 3 X 40L Air Tanks |
|
Max payload
|
40-80TON
|
|
Dimension(L*W*H)
|
12400*2610*1550mm
|
|
Main Beam
|
Q345B / T700 Steel Height 500mm
upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
|
Side Beam
|
16mm channel steel(material is Q235B steel)
|
|
Leaf Spring
|
90(w)mm*13(thickness)mm*10(layer)
|
|
Landing Gear
|
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
|
|
Brake System
|
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear
reflector,side light, side reflector etc.) |
|
King Pin
|
2"(50mm)or3.5"(90mm) JOST or other brand
|
|
Axle
|
13/16/20 Ton, 4 axles SAF /FUWA/BPW/WOSHENG
|
|
Suspension
|
Mechanical Suspension Air Suspension(American or Geman)
|
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
|
|
Rim
|
9.00-22.5/8.00-20/8.50-20
|
|
ABS System
|
installed as your requirement.
|
|
Electrical SYSTEM
|
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness)
|
|
Accessory
|
1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime,2 coats of final paint
|
|
Packaging and delivery
|
Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.From China
port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
|
remarks
|
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
|
