Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 9800x2500x3500mm |
| Max Payload: | 30-100T | Product Name: | Rear Dump Trailer |
| Function: | Sand Stone Grain Transporting | Main Beam: | Q345B / T700 Steel |
| Color: | Customer's Request | Leaf Spring: | 28t Heavy Duty Landing Gear |
| Brake System: | Dual Line Brake System | King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand |
| Axle: | 13/16 Ton, 3 Axles FUWA/Wosheng | Suspension: | Mechanical Suspension |
| Landing Gear: | Heavy Duty Landing Gear 28t |
|
Product
Name
|
Rear Dump Semi Trailer
|
|
Application
|
Bulk Cargo Sand Ore Transport
|
|
MOQ
|
1
|
|
Delivery
Time
|
Normal 10-15 days, according to the quantity you order
|
|
Service
|
OEM / ODM service
|
|
Color
|
According to customers requirements
|
|

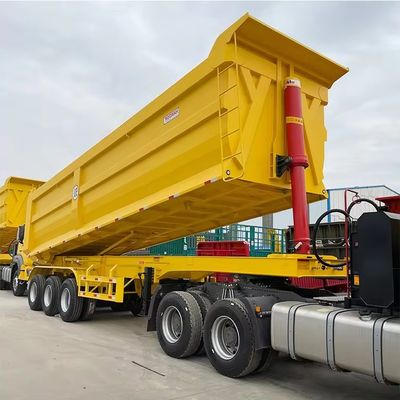

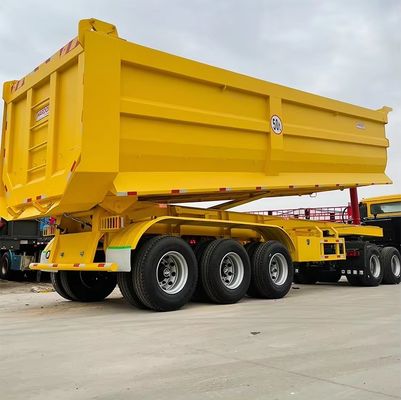

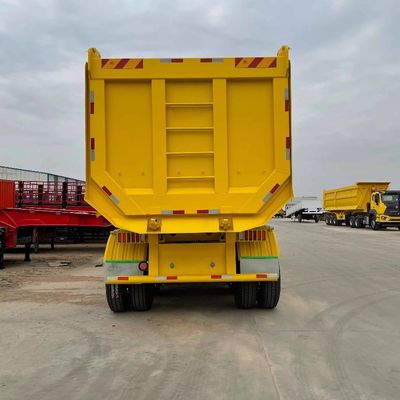

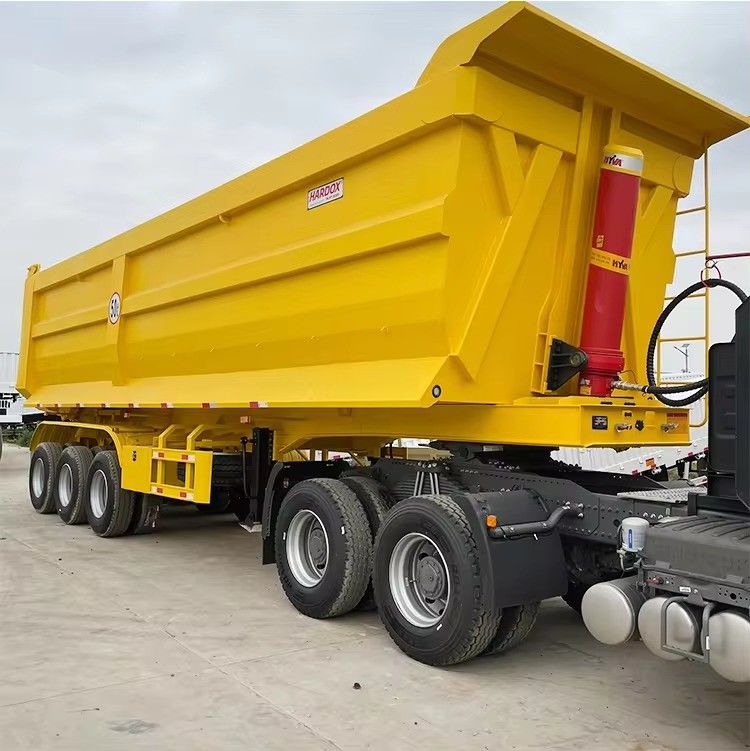

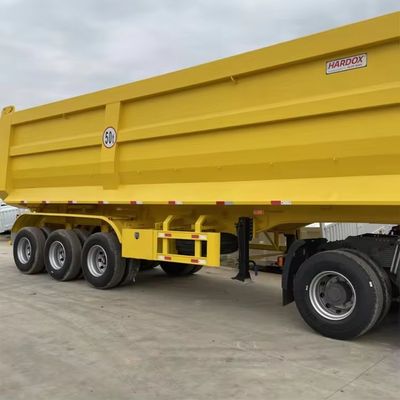

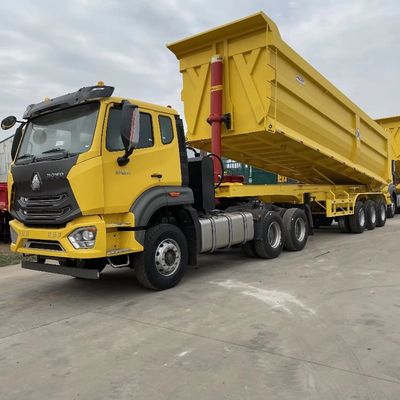

3 axle rear dump tipper or dumper semi trailer
|
|
|
|
|
|
|
Items
|
Rear Sump Semi Trailer
|
|
|
|
|
|
Tare Weight
|
8.5 Tons (depends on final configuration)
|
|
|
|
|
|
Payload
|
60 tons or cutomizable
|
|
|
|
|
|
Size
|
9300x2500x3450mm (customizable)
|
|
|
|
|
|
Main Beam
|
Q345B/T700 steelHeight 500mm
Upper Plate is 14mm Down plate is 16mm Middle plate is 8mm or customization |
|
|
|
|
|
Floor Plate
|
Thickness 6mm
|
|
|
|
|
|
Sidewall
|
Thickness 4mm
|
|
|
|
|
|
Axles
|
13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc
|
|
|
|
|
|
King pin
|
2.00"(50#), bolting king pin, JOST or another brand according to customer
|
|
|
|
|
|
Suspension
|
Mechanical suspension air suspension (American or Geman)
|
|
|
|
|
|
Leaf Spring
|
Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
|
|
|
|
|
|
Landing gear
|
28tons lifting capacity , Brand optinal FUWA/JOST etc can be choose
|
|
|
|
|
|
Tire specs
|
12R22.5/315 80R22.5/11R20/12R20 Choose freely
|
|
|
|
|
|
Braking system
|
dual line brake system , Air chamber T30/30 3X40L gas storage drums
|
|
|
|
|
|
Rim
|
9.00-22.5 /8.00-20/8.5-20
|
|
|
|
|
|
ABS system
|
None or installed as your requirement.
|
|
|
|
|
|
Painting
|
Sanding , anti-corrosion , one primer paining add two layer top coat painting
|
|
|
|
|
|
Side Gurd
|
According to customer
|
|
|
|
|
|
Electrical system
|
24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights
conform to european standard, rear front and side reflectors |
|
|
|
|
|
spare tire
|
Two set of heavy duty spare wheel carriers, indluding a riser
|
|
|
|
|
