Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400x2500x1550mm |
| Max Payload: | 50 Ton | Function: | Transport 40ft Container |
| Main Beam: | Q345B Height 500mm Upper/down/middle Plate Are 14mm /16mm/8mm | Color: | Customer's Request |
| Leaf Spring: | 90(w)mm*13/16(thickness)mm*10(layer) | Brake System: | Dual Line Braking System |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Axle: | 13Ton, 3 Axles FUWA |
| Suspension: | Mechanical Suspension | Landing Gear: | Heavy Duty Landing Gear 28t |
| Tire: | 12.00R22.5/315 80R22.5/11.00R20(Brand Optional) |
|

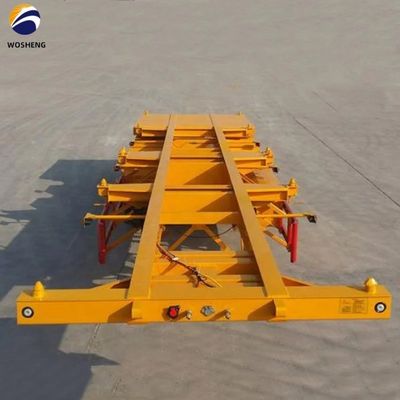

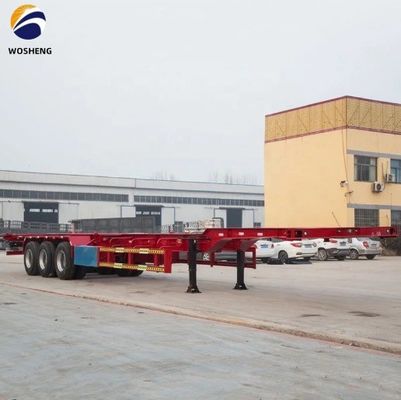

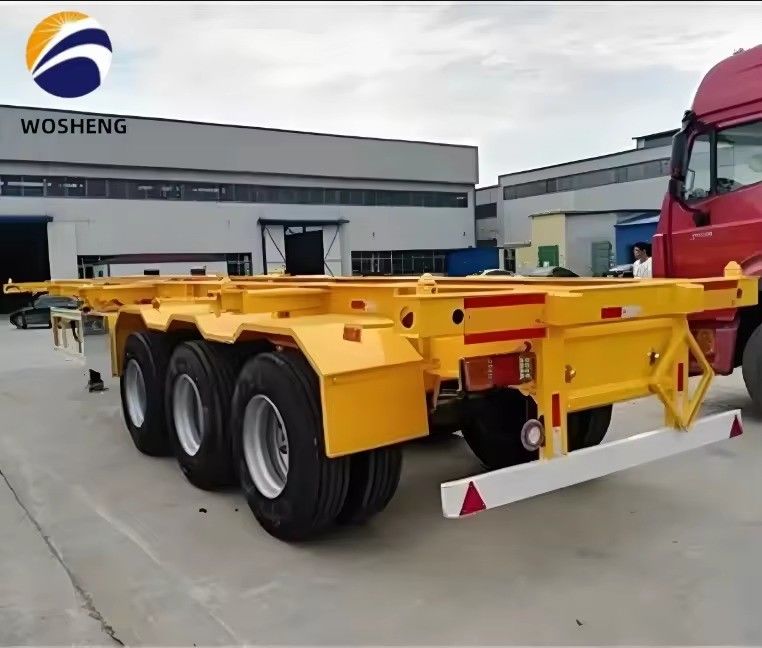

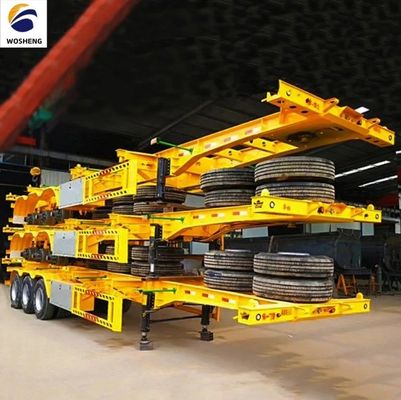

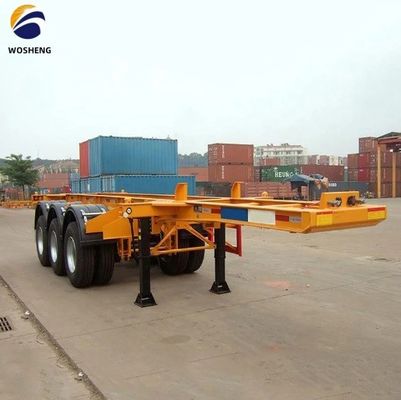

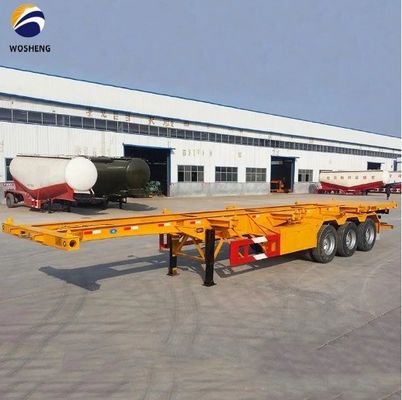

Wosheng Skeleton Container Trailer
|
|
|
||
|
20FT Skeleton Semi Trailer
|
40FT Skeleton Semi Trailer
|
45FT Skeleton Semi Trailer
|
||
|
Brand: Wosheng
|
Brand: Wosheng
|
Brand: Wosheng
|
||
|
2 Axles/3 Axles
|
3 Axles/ 4 Axles
|
3 Axles/ 4 Axles
|
||
|
20ft Container Loading
|
1*40ft/2*20ft Container Loading
|
1*45ft/1*40ft/2*20ft Container Loading
|
||
|
Loading Capacity: 20-50 Tons
|
Loading Capacity: 30-80 Tons
|
Loading Capacity: 30-80 Tons
|
||
|
Type: Gooseneck or Tandem
|
Type: Gooseneck or Tandem
|
Type: Gooseneck or Tandem
|
||
|
Main Bean
|
|
|
||
|
Material: Q345/T700
|
Material: Q345/T700
|
Material: T700
|
||
|
Upper Plate Thickness: 12mm
|
Upper Plate Thickness: 14mm
|
Upper Plate Thickness: 10mm
|
||
|
Middle Plate Thickness: 6mm
|
Middle Plate Thickness: 6mm
|
Middle Plate Thickness: 5mm
|
||
|
Lower Plate Thickness: 12mm
|
Lower Plate Thickness: 16mm
|
Lower Plate Thickness: 10mm
|
||
|
Height: 500mm
|
Height: 500mm
|
Height: 420mm
|
||
|
Dimension
|
|
|
||
|
L*W*H: 7000mm*2480mm*1560mm
|
L*W*H: 12400mm*2480mm*1580mm
|
L*W*H: 13950mm*2500mm*1600mm
|
||
|
Axle
|
|
|
||
|
2/3 Axles *13 Ton
Wosheng/FUWA/BPW or Anothers |
3/4 Axles *13 Ton
Wosheng/FUWA/BPW or Anothers |
3/4 Axles *13/16 Ton
Wosheng/FUWA/BPW or Anothers |
||
|
Tire
|
|
|
||
|
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double Coin/Bridgestone |
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double Coin/Bridgestone |
12R22.5 (12/16 Pieces)
Linglong/Triangle/Double Coin/Bridgestone |
||
|
Rim
|
|
|
||
|
9.00*22.5 (8/12 Pieces)
Steel/Aluminum |
9.0*22.5 (12/16 Pieces)
Steel/Aluminum |
9.00*22.5 (12/16 Pieces)
Steel/Aluminum |
||
|
Leaf Spring
|
|
|
||
|
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces |
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces |
90mm*13mm*10 Pieces
90mm*16mm*10 Pieces |
||
|
King Pin
|
|
|
||
|
#50 (2")/#90 (3.5")
JOST/Other Brand |
#50 (2")/#90 (3.5")
JOST/Other Brand |
#50 (2")/#90 (3.5")
JOST/Other Brand |
||
|
Landing Gear
|
|
|
||
|
28 Tons Two Speed
JOST/Other Brand |
28 Tons Two Speed
JOST/Other Brand |
28 Tons Two Speed
JOST/Other Brand |
||
|
Twist Lock
|
|
|
||
|
4 Sets
|
12 Sets
|
12 Sets
|
||
|
Painting
|
|
|
||
|
Electrophoresis Painting
|
Electrophoresis Painting
|
Electrophoresis
|
||
|
Vehicle Painting
|
|
|
||
|
Electrophoresis painting
|
Electrophoresis painting
|
Electrophoresis painting
|
||
