Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | Buyer's Request |
| Max Payload: | 60T/80T/100T/150T Or Buyer's Request | Product Name: | Lowbed Semi Trailer |
| Suspension: | Mechanical Suspension/Air Suspension(American Or Geman) | Function: | Multi-Use |
| Landing Gear: | 28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG | Tire: | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand Optional) |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST Or Other Brand | Axle: | 13/16/20 Ton, SAF /FUWA/BPW/WOSHENG |
| Color: | Custom's Requirement | Brake System: | Dual Line, Air Chamber T30/30,3 X 40L Gas Storage Drums |
| ABS System: | None Or Installed As Your Requirement |
|

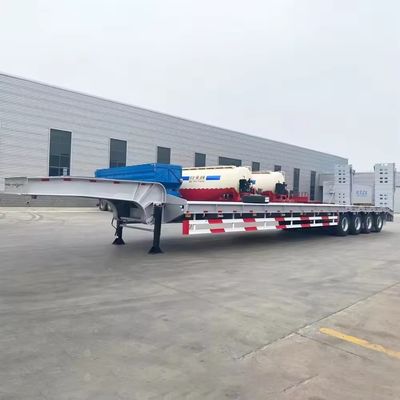

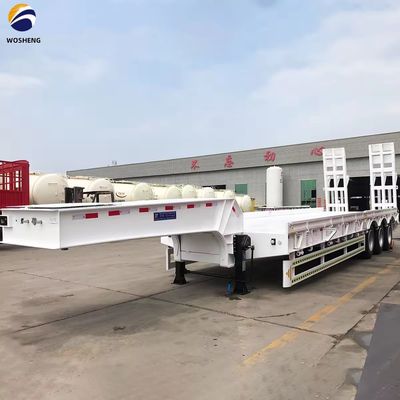

Wosheng Lowbed Lowboy Semi Trailer (Customerize and OEM Service Available)
|
|
|
|
|||
|
Product Name
|
2 axles lowbed semi trailer
|
3 axles lowbed semi trailer
|
4 axles lowbed semi trailer
|
|||
|
Size(mm)
|
12500*3000*1100
|
13000*3000*1100
|
14000*3000*1100
|
|||
|
Payload
|
40000KG
|
60000KG
|
80000KG
|
|||
|
Plate
|
4mm checked plate
|
4mm checked plate
|
5mm checked plate
|
|||
|
Axles
|
2 * 13ton capacity
(Brand optional) |
3 * 13ton capacity
(Brand optional) |
4 * 13ton capacity
(Brand optional) |
|||
|

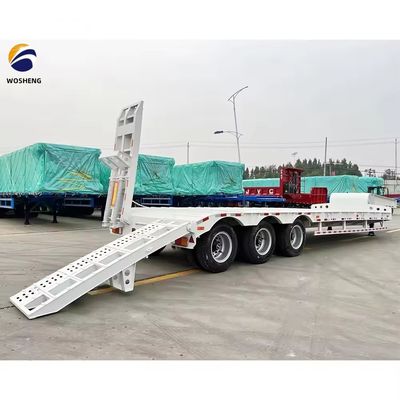

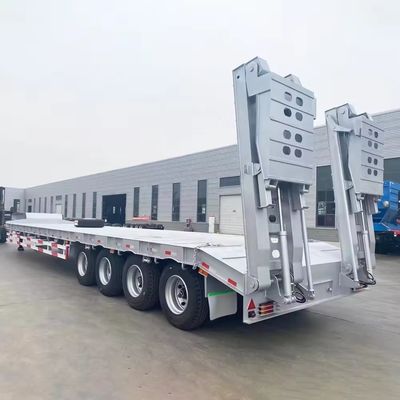

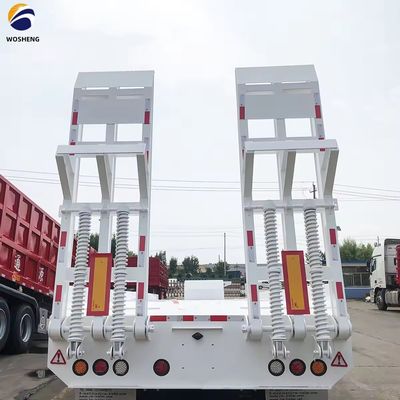

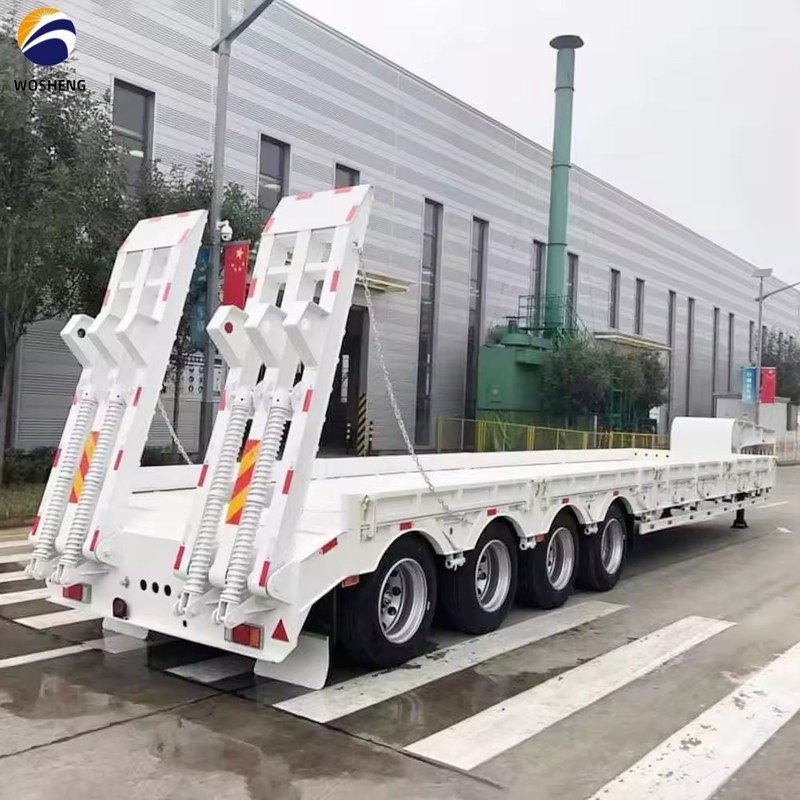

Ladder
|
Hydraulic ladder or Mechanical spring ladder
|
|
|
|||
|
Main beam
|
Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm ;
Material is Q345B Steel. |
|
|
|||
|
Side beam
|
250mm I beam; 20mm channel steel ( Material is Q235steel ).
|
|
|
|||
|
Bottom Platform
|
4mm thickness diamond steel plate
|
|
|
|||
|
Suspension
|
Mechanical suspension (Air suspension optional)
|
|
|
|||
|
Leaf spring
|
90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
(specially intended for overseas markets) |
|
|
|||
|
Tire
|
12R22.5 / 11.00R20 8pcs (Other size optional)
|
|
|
|||
|
Rim
|
9.00-22.5 / 11.00R20 8pcs (Other size optional)
|
|
|
|||
|
Kin pin
|
2’’/3.5’’ bolt type
|
|
|
|||
|
Landing gear
|
28 Ton two speed
|
|
|
|||
|
Braking system
|
Double air chamber ,brake valve,45L air tanks ;ABS optional
|
|
|
|||
|
Electrical
|
LED light , 7 ways ,24V
|
|
|
|||
|
Accessory
|
One tooling box with a set of standard trailer tool
|
|
|
|||
|
Painting
|
1.Sand blasting processing clean rust.
2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice. |
|
|
|||
|
Other Descriptions
|
The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
transportation. |
|
|
|||
|
Usage
|
It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products. |
|
|
|||
|
Other Specifications
|
It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders
belong to optional components), with the overall height of 1710 mm. |
|
|
|||
|
Remark
|
We can design model according to client's requirement
|
|
|
|||
