Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Size: | 12400x2610x1550mm Or Customization |
| Max Payload: | 80tons | Color: | Customization |
| Usage: | Container Etc All Kind Of Cargo | Axle: | 3 Axles Or Customization |
| Tare Weight: | 7.0 Ton Or Customaization | Loading Capacity: | 50Tons Or Customization |
| King Pin: | 2.00" (50#)/(90#) | Tire Specs.: | 12R22.5, Triangle Brand Or According Customer Reauirements |
| Rim: | 9.0-22.5 | Main Beam: | Q345b |
| Lead Time: | One Week |
|

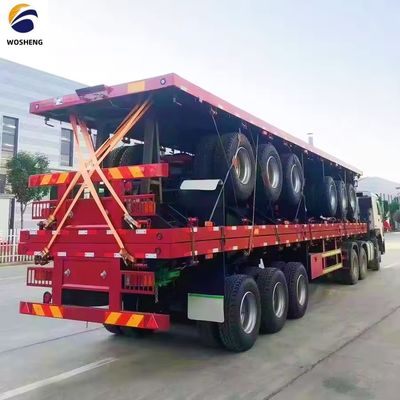

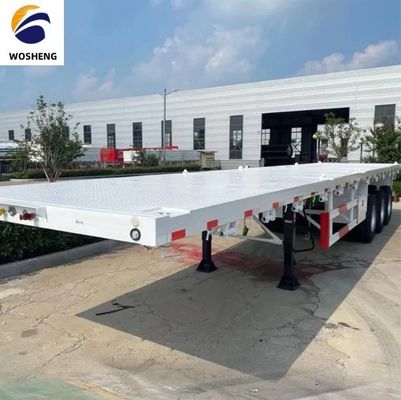

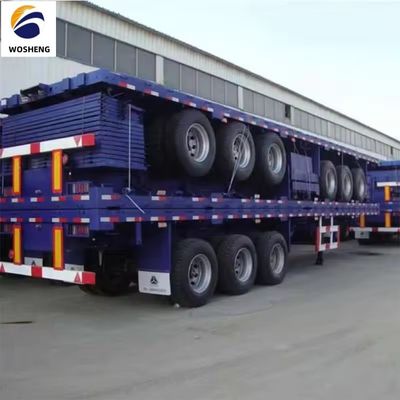

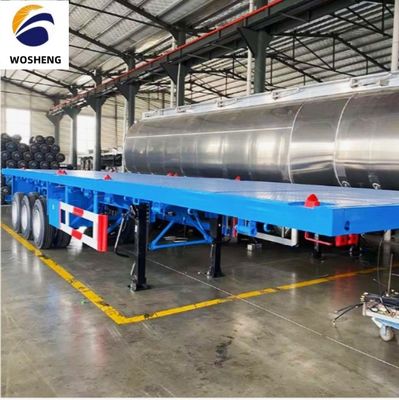

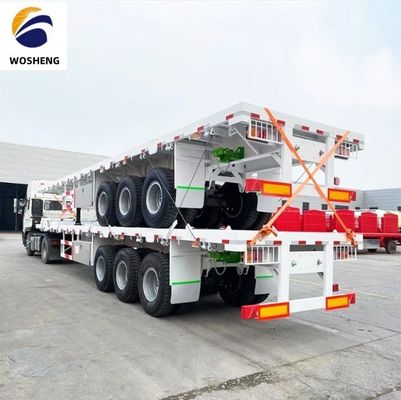

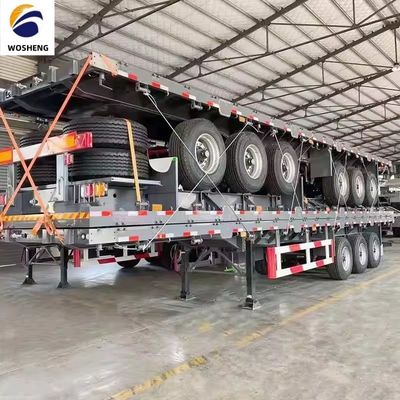

Wosheng 40Ton Flatbed Trailer 20/40/45/48ft Container Flatbed Semi-trailer Chassis
|
|
|
|
|||
|
Product name
|
20 FT Flatbed Semi-trailer
|
40 FT Flatbed Semi-trailer
|
45 FT Flatbed Semi-trailer
|
|||
|
Product Size
|
7000*2500*1570mm
|
12400* 2500*1570mm
|
13950*2500*1600mm
|
|||
|
Axle
|
2 /3 Axles*13Ton FUWA/BPW/Wosheng/other
|
2 /3 Axles*13Ton FUWA/BPW/Wosheng/other
|
2 /3 Axles*13Ton FUWA/BPW/Wosheng/other
|
|||
|
Application
|
1*20 ft Container or cargo Loading Loading
|
1*40ft/2*20 ft Container/Cargo Loading
|
1*40ft/1*45/2*20 ft Container / Cargo Loading
|
|||
|
Capacity
|
20-60 Tons
|
30-80 Tons
|
30-100 Tons
|
|||
|
Main Beam Material
|
Q345/T700
|
Q345/T700
|
Q345/T700
|
|||
|
Upper Plate Thickness
|
12mm
|
14mm
|
16mm
|
|||
|
Middle Plate Thickness
|
6mm
|
8mm
|
10mm
|
|||
|
Down Plate Thickness
|
14mm
|
16mm
|
18mm
|
|||
|
Height
|
500mm
|
|
|
|||
|
Platform Thickness
|
3mm thick patterned steel plate
|
|
|
|||
|
Leaf Spring
|
90mm*13mm*10/90mm*16mm*10layers
|
|
|
|||
|
Kin Pin
|
50#(2")/90#(3.5") JOST/Other Brand
|
|
|
|||
|
Landing Gear
|
28 Tons Two Speed,JOST/Other Brand
|
|
|
|||
|
Twist Lock
|
4 Sets
|
12 Sets
|
12Sets
|
|||
|
Suspension System
|
Mechanical or Air Suspension
|
|
|
|||
|
Tire
|
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
|
|
|
|||
|
Rim
|
9.00*22.5 (8/12 Pieces)
|
|
|
|||
|
Tool Box
|
Steel or Aluminum
|
|
|
|||
|
Painting
|
Electrophoresis paint
|
|
|
|||
|
If you want to know more details,please contact us directly
|
|
|
|
|||
